3-Piece glass with 3-times more satisfying plastic wrap removal
Enormous space to fit EATX motherboard with 450mm length VGA Card
Exquisite panoramic chamber design
| Motherboard Support: ITX/M-ATX/ATX/E-ATX(Support BTF) | Reserved Fan Ports: |

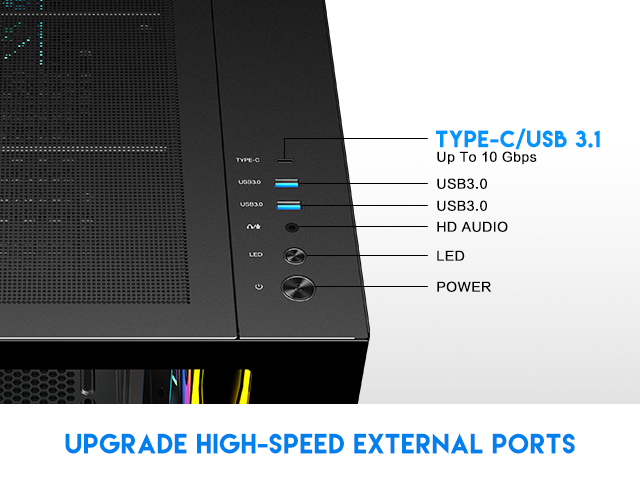

| I/O Port: USB3.0x2 | Front: N/A |
| PCI Slots(fixed): x7 | Top: 3*120 or 2*140mm(Fan optional) |
| Chassis: L430*W277*H410mm | Support 120/240/280/360mm liquid cooler |

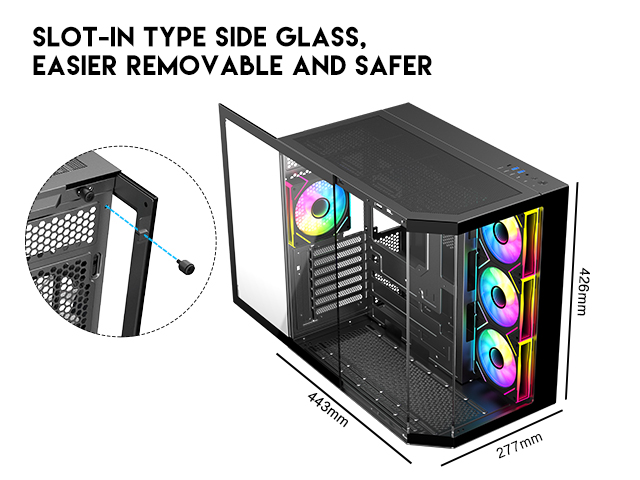

| Product: L443*W277*H426mm | Rear: 1*120mm(Fan optional) |
| Carton: L492*W344*H515mm | Support 120mm liquid cooler |
| PSU Port: Bottom /ATX | Motherboard:3*120mm (Fan optional) |

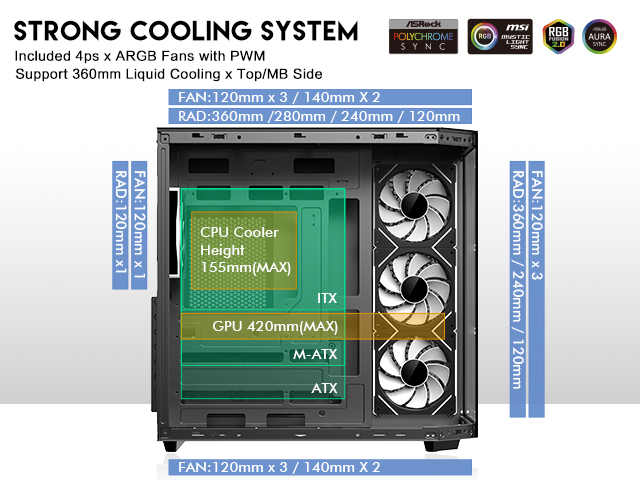

| Max.VGA Card: 420mm | Support 120/240/360mm liquid cooler |
| Max.CPU Cooler: 155mm | Bottom:3*120mm or 2*140mm (Fan optional) |

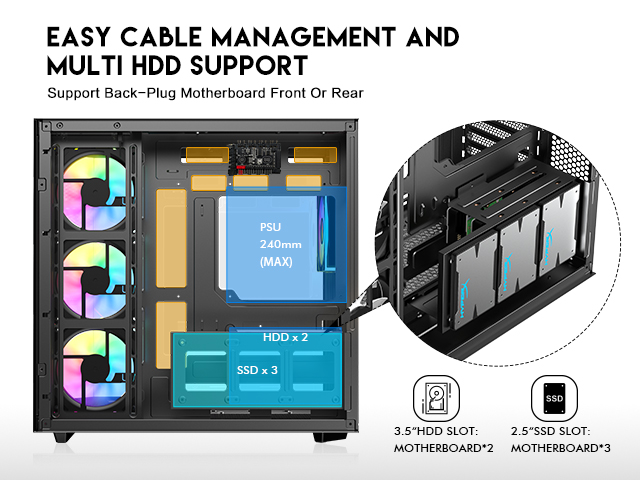

| Cable Management: 90mm | Drive Bays: 5.25" ODD x0 |
| Loading QTY: 20GP 310pcs | 3.5" HDD x2 |
| 40HQ 700pcs | 2.5" SSD x3 |
D430ZF-BLACK-详情1.jpgD430ZF-BLACK-详情2.jpgD430ZF-BLACK-详情3.jpgD430ZF-BLACK-详情4.jpgD430ZF-BLACK-详情5.jpgD430ZF-BLACK-详情6.jpg
