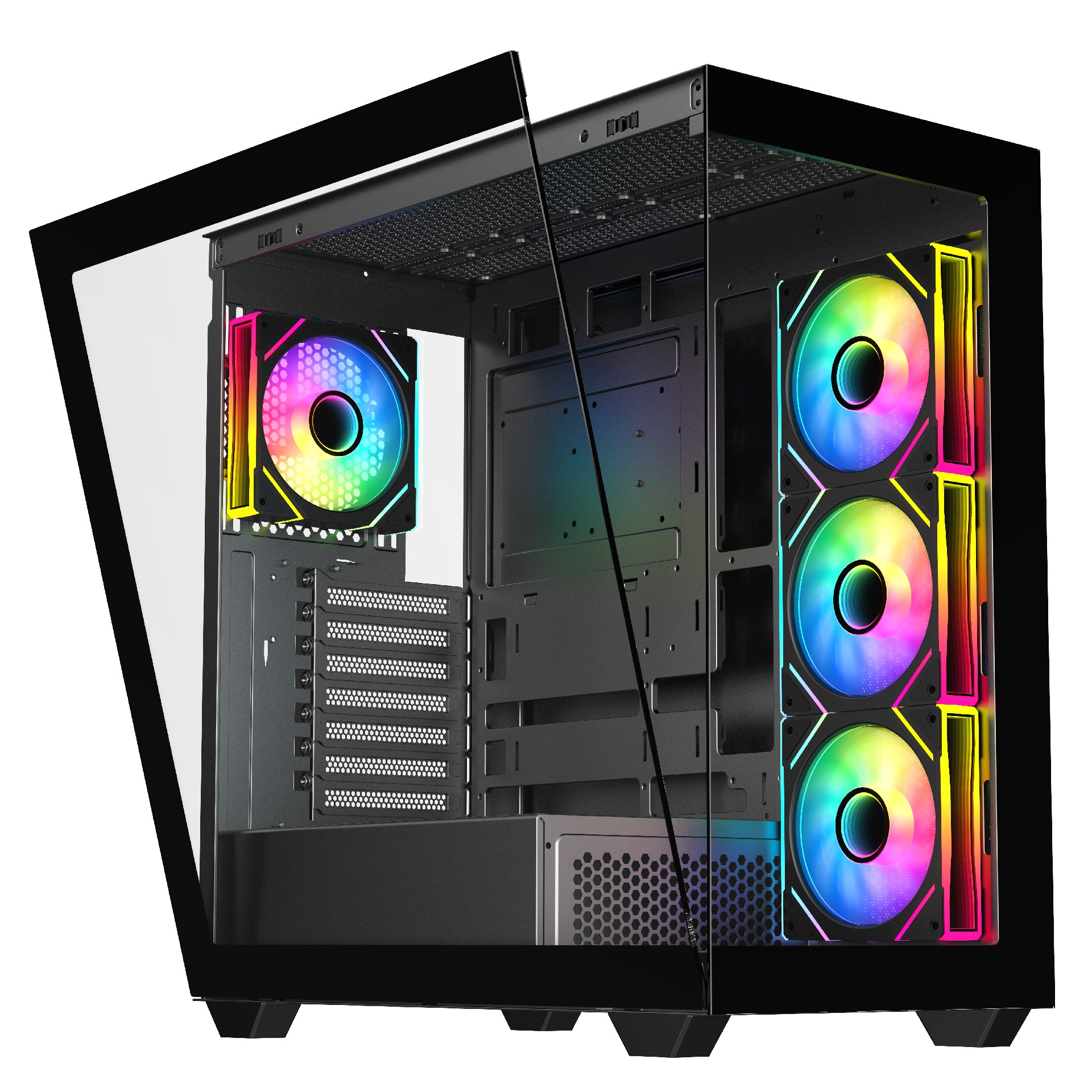

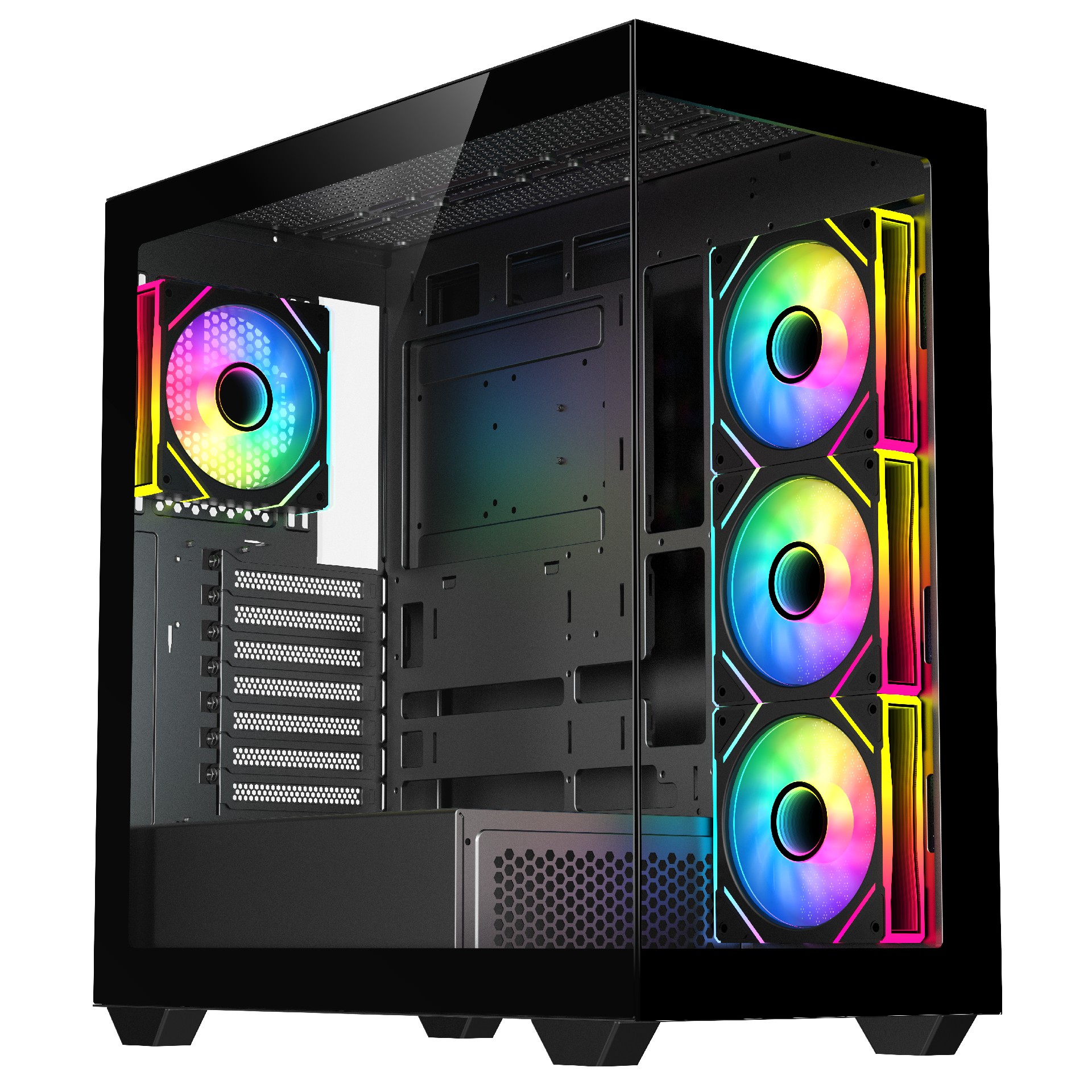

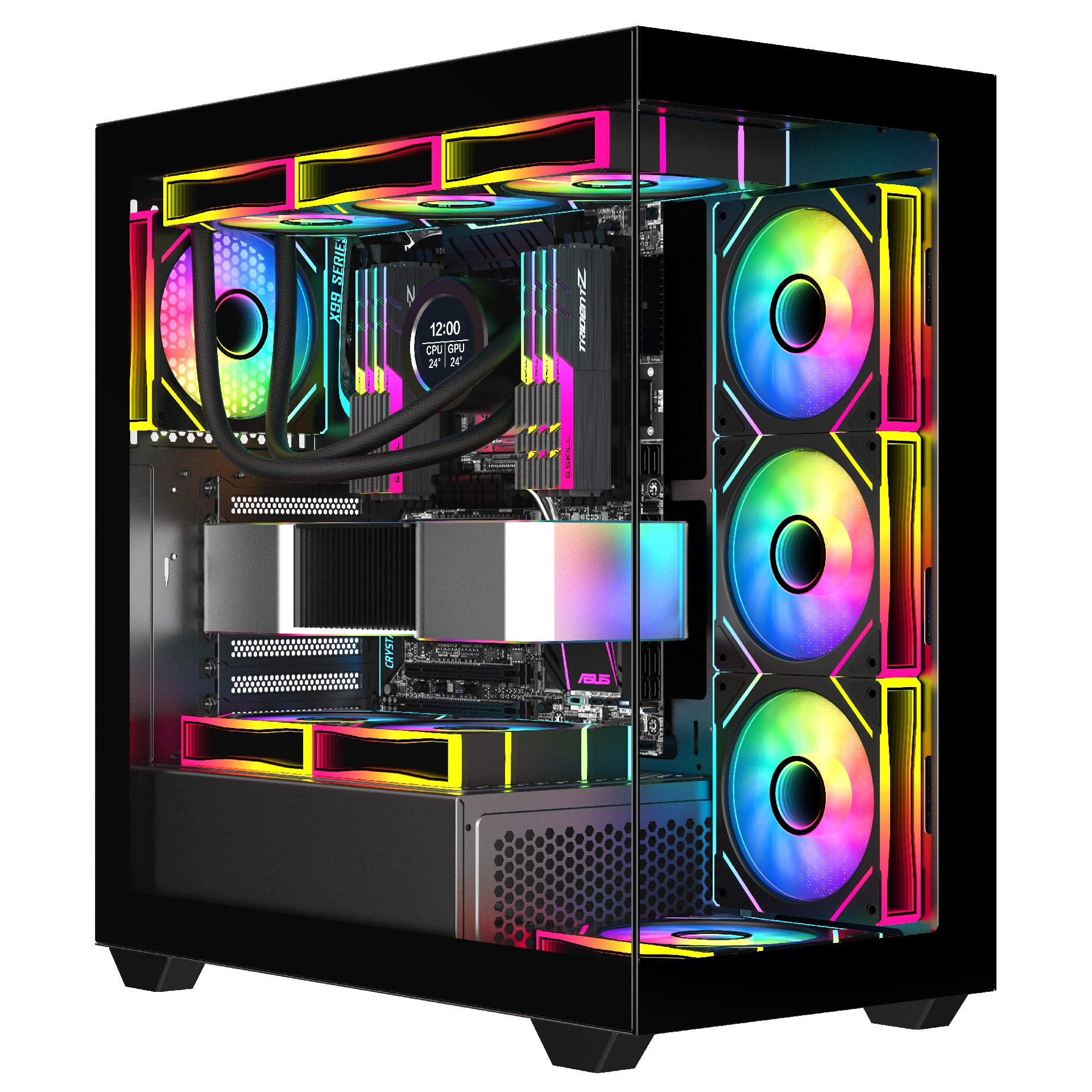

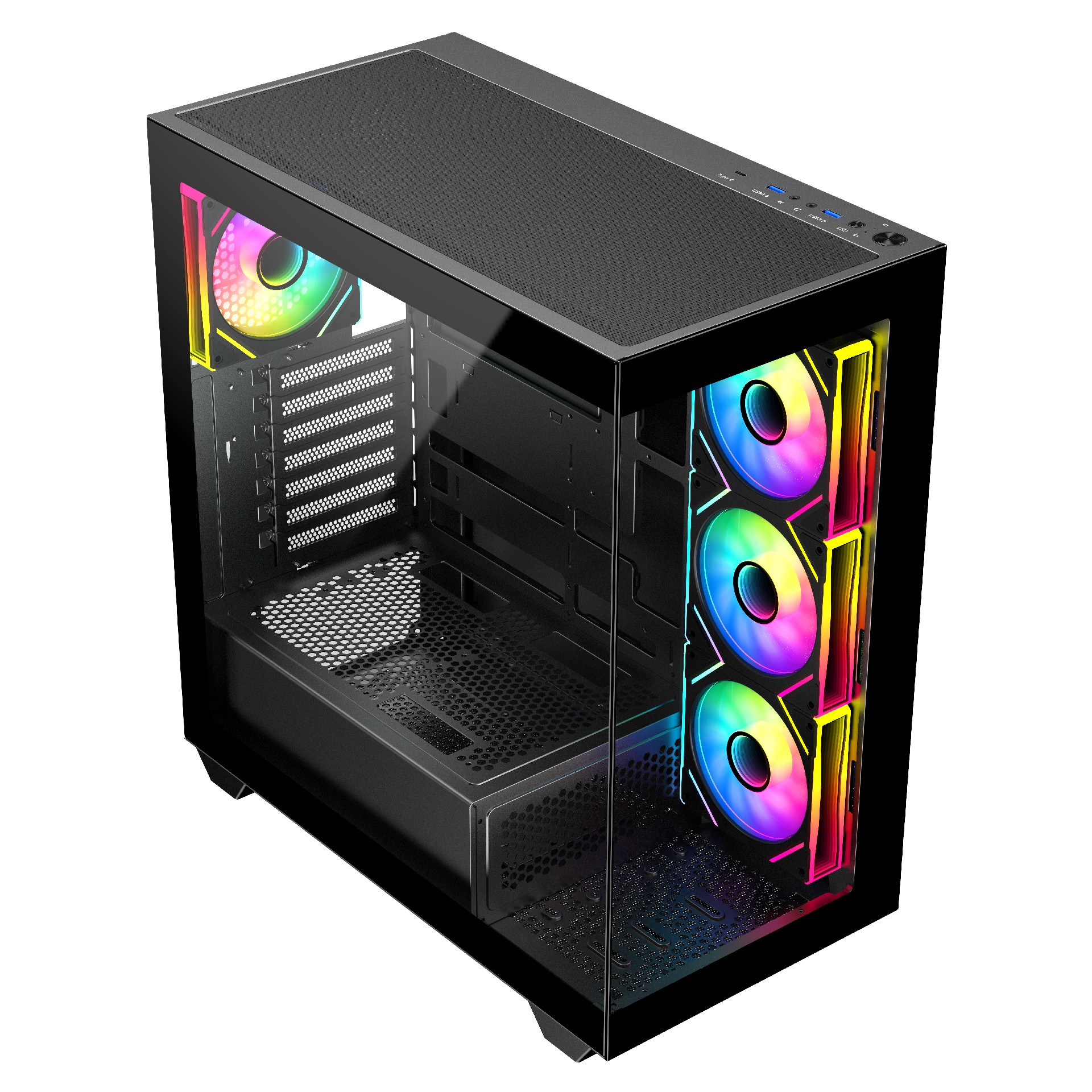

270° Panoramic design without A-Pillar
Air inlet design create better airflow

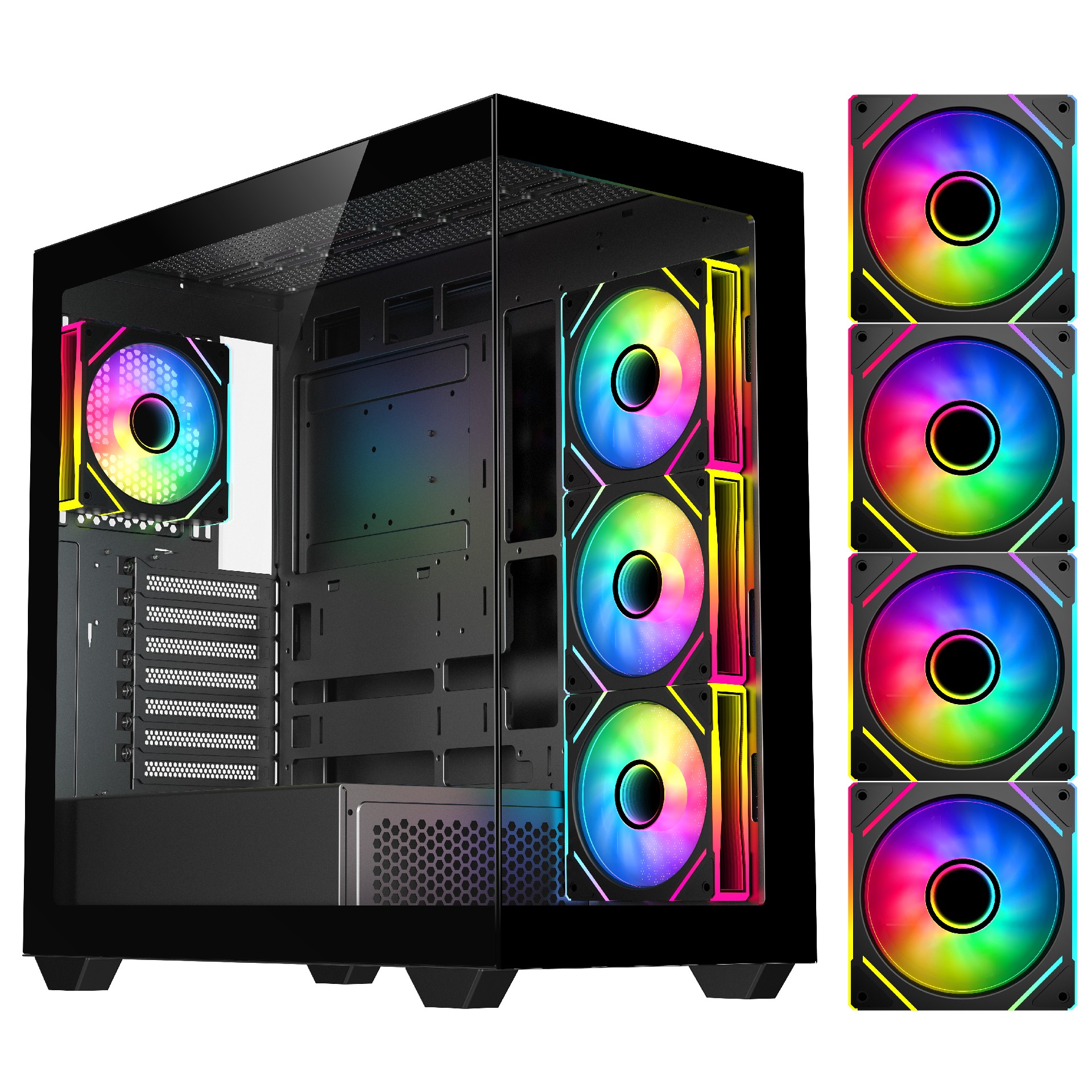

Support up to 10 fans
Support up to 360mm AIO cooler
Motherboard Support: ITX/M-ATX/ATX/E-ATX(Support BTF) | Reserved Fan Ports: |
I/O Port: USB1.0x2+USB3.0x1 | Front: N/A |
PCI Slots(fixed): x7（SupportVertical: x7) | Top: 3*120 or 3*140mm(Fan optional) |
Chassis: L445*W238*H450mm | Support 120/240/280/360mm liquid cooler |
Product: L445*W238*H450mm | Rear: 1*120mm or 1*140mm (Fan optional) |
Carton: L518*W300*H514mm | Support 120/140mm liquid cooler |
PSU Port: Bottom mounted/ATX/Max 200mm | Motherboard:3*120mm (Fan optional) |
Max.VGA Card: 425mm | Bottom:1*120mm or 3*140mm (Fan optional) share with HDD position |
Max.CPU Cooler: 180mm | Power Box: 2*120 (Fan optional) |
Loading QTY: 20GP 325pcs | Drive Bays: 5.25" ODD x0 |
| 40HQ 825pcs | 3.5" HDD x2 |
| / | 2.5" SSD x3 |
D430ZF-BLACK-详情1.jpgD430ZF-BLACK-详情2.jpgD430ZF-BLACK-详情3.jpgD430ZF-BLACK-详情4.jpgD430ZF-BLACK-详情5.jpgD430ZF-BLACK-详情6.jpg
